Water Control Solutions

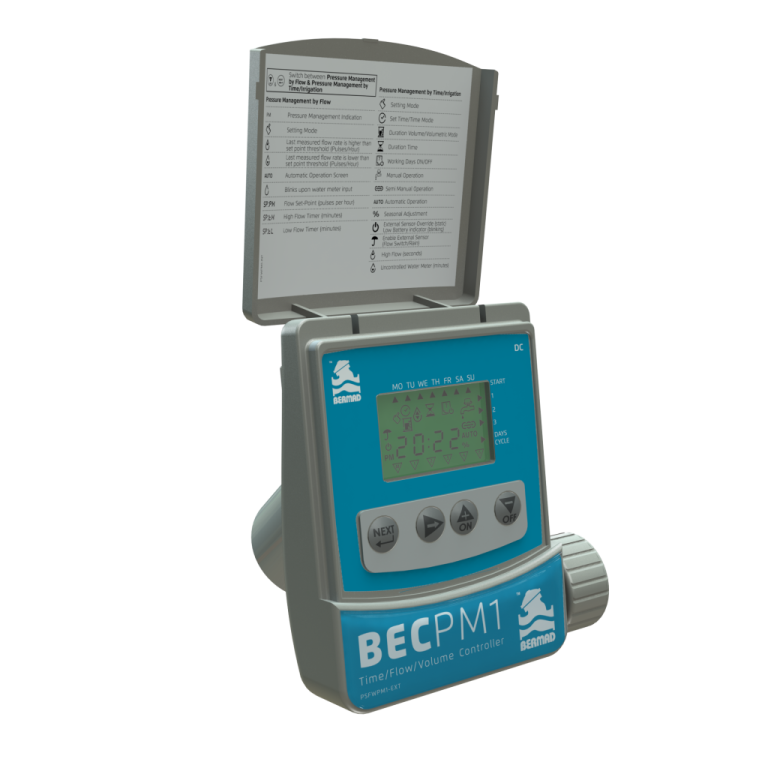

BEC PM1

The BEC PM1 allows the control of Pressure Management by flow or by time when used in conjunction with BERMAD’s dynamic PRV. The BEC PM1 is programmed to change the system pressure during high and low demand. The BEC PM1 enables volumetric control when used with BERMAD On/Off control valves. The BEC PM1 is a self-contained unit that can operate without the need for external terminal or laptop for programing.
Product Features & Benefits

Pressure management

Optimize network pressure management
Alternate between high pressure and low pressure periods by time or by flow
Up to three time windows for high pressure per day
Flow switch override for fire flow – require additional equipment

Flushing dead ends by volume

Account for water flushed out of the pipe to refresh the system
Optimize water quality
Automatic refreshing reservoirs

Ease of programming

Up to three start times per day
Weekly schedule or Interval scheduling
12 or 24 hours clock
Schedule adjustment 10%-200%
Preset volume up-to 9999 pulses

Installation in remote areas and confined spaces

Operated by 9 VDC Alkaline battery
Battery last for one year

User friendly

“Next Step” programming
Self-contained, no need for special cables, programmers or laptop for adjustments
