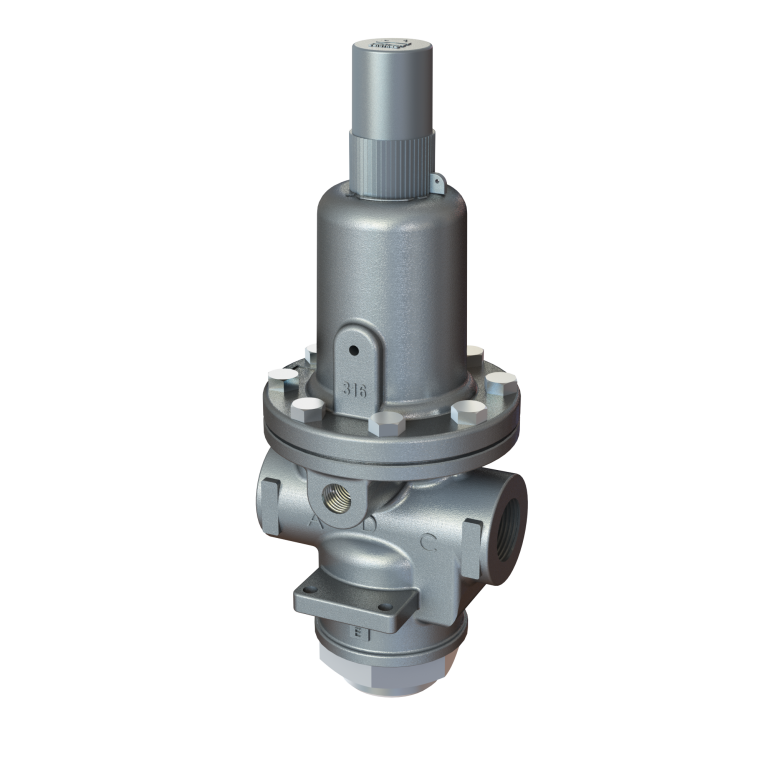

FP-3HC-R – Pressure Relief Pilot Valve

The BERMAD FP-3HC-R is a high capacity diaphragm actuated Pressure Relief Pilot Valve. This pilot valve is actuated by a pressure responsive, spring loaded diaphragm, which tends to reach equilibrium with the adjustable pre-set spring force, thereby relieving or sustaining the chosen pre-set inlet/upstream pressure value. The FP-3HC-R is intended for use in the control loop of BERMAD large diameter pilot operated pressure relief / sustaining valves
Product Features & Benefits
  •  Internal pressure sensing
  • Remote sensing, optional
Typical Product Applications
  • Pilot valve for Relief Valves sizes 12-16 inch (model 3HC-R)
  • Pilot valve for Differential Pressure Sustaining Valves sizes 12-16 inch (model 3HC-DR)
