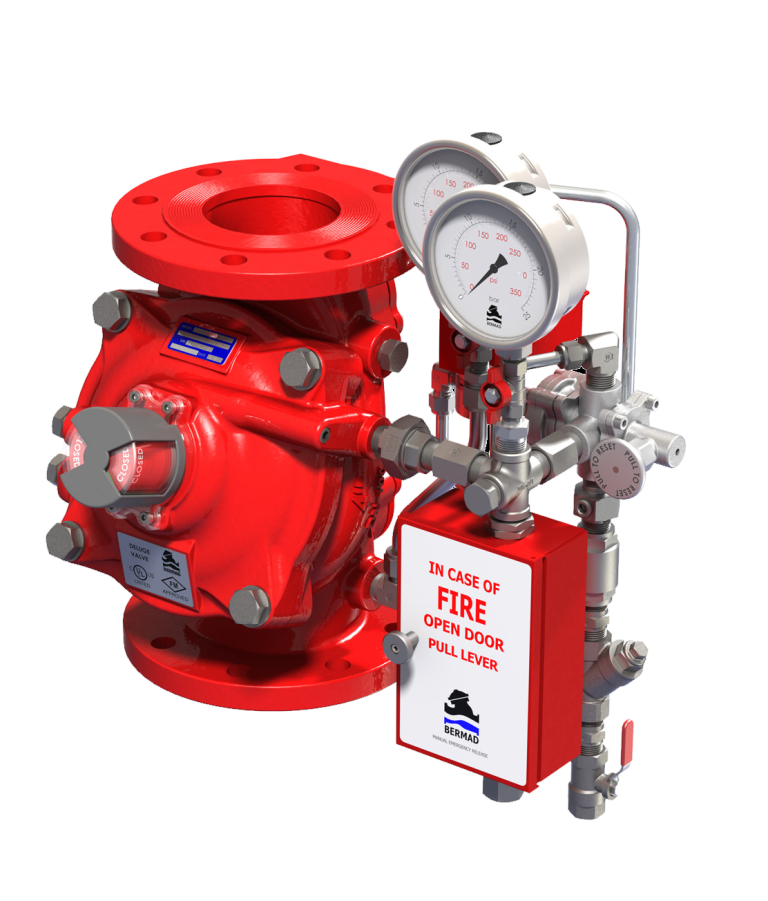

FP 400Y-3UM
The BERMAD model 400Y-3UM is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems, and the latest industry standards.
The 400Y-3UM is activated by a 3-way solenoid valve, which actuates a latching relay valve, opening the main valve. Once open, the main valve will not close until locally reset. The valve’s position monitoring device features a visual position indicator, that can interface with any fire & gas control system.
The 400Y-3UM is suitable for systems with open nozzles for water or foam discharge, available with electric components to suit any hazardous location.
Features and Benefits:
- Safety and reliability
- Time proven, Simple, fail-safe actuation
- Single piece, rugged elastomeric diaphragm seal – VRSD technology
- Obstacle-free, uninterrupted flow path
- No mechanical moving parts
- Latches open: remains open until reset locally
- Valve position limit switches
- Local valve position indicator beacon
- High performance
- Very high flow efficiency
- Straight through flow Y- type body
- Approved for PN25 / 365 psi
- Specifically designed for fire protection
- Face-to-face length standardized to ISO 5752 / EN 558-1
- Meets the requirements of the industry standards
- Quick and easy maintenance
- In-line serviceable
- Quick cover removal without detaching control trim*
- Swivel mounted drain valves*
* not including 1½” & 2” valves
