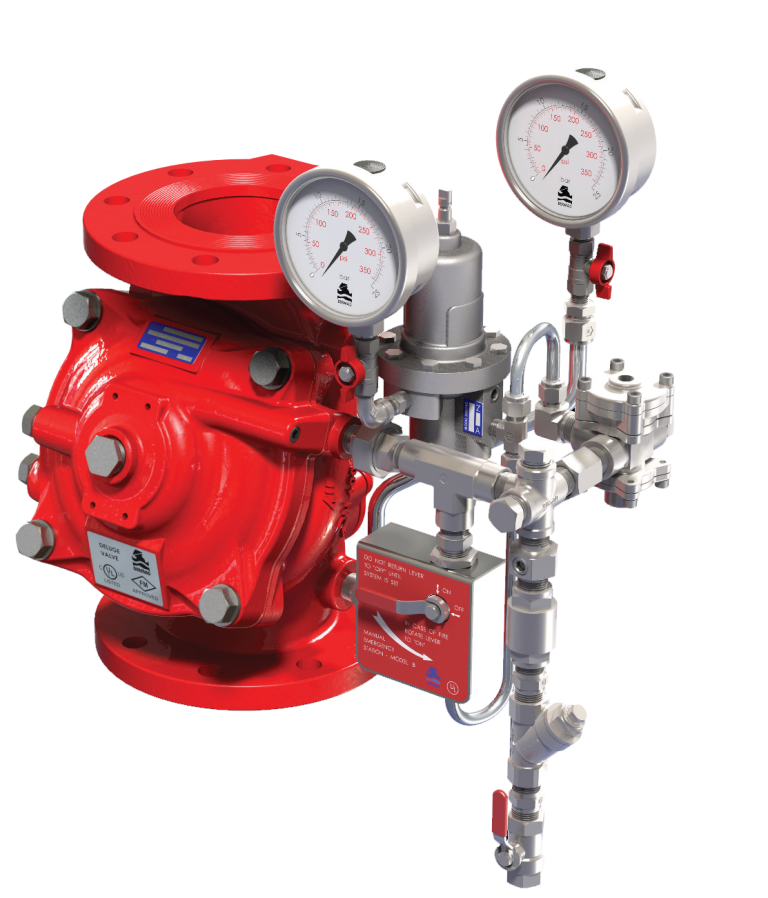

FP 400Y-4DC
The BERMAD model 400Y-4DC is an elastomeric hydraulic, line pressure operated, deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y-4DC is activated by a pneumatic relay valve. Opening and closing of the valve can be controlled remotely. An integrated pressure reducing pilot valve ensures a stable and precise pre-set downstream water pressure. The 400Y-4DC is suitable for open-nozzle systems with a high pressure water supply and/or relatively low flow. The pneumatic control makes the 400Y-4DC suitable for freezing environments and /or corrosive water supplies.
Features and Benefits:
- Safety and reliability
- Time proven, Simple, fail-safe actuation
- Single piece, rugged elastomeric diaphragm seal – VRSD technology
- Obstacle-free, uninterrupted flow path
- No mechanical moving parts
- Shuts off on remote command
- Ensures precise, stable downstream water pressure
- Valve position limit switches
- High performance
- Very high flow efficiency
- Straight through flow Y- type body
- Approved for PN25 / 365 psi
- Specifically designed for fire protection
- Face-to-face length standardized to ISO 5752 / EN 558-1
- Suitable for corrosive fluids and freezing temperatures: pneumatic relay valve
- Meets the requirements of the industry standards
- Quick and easy maintenance
- In-line serviceable
- Quick cover removal without detaching control trim*
- Swivel mounted drain valves*
* not including 1½” & 2” valves
