FP 400Y-6DC

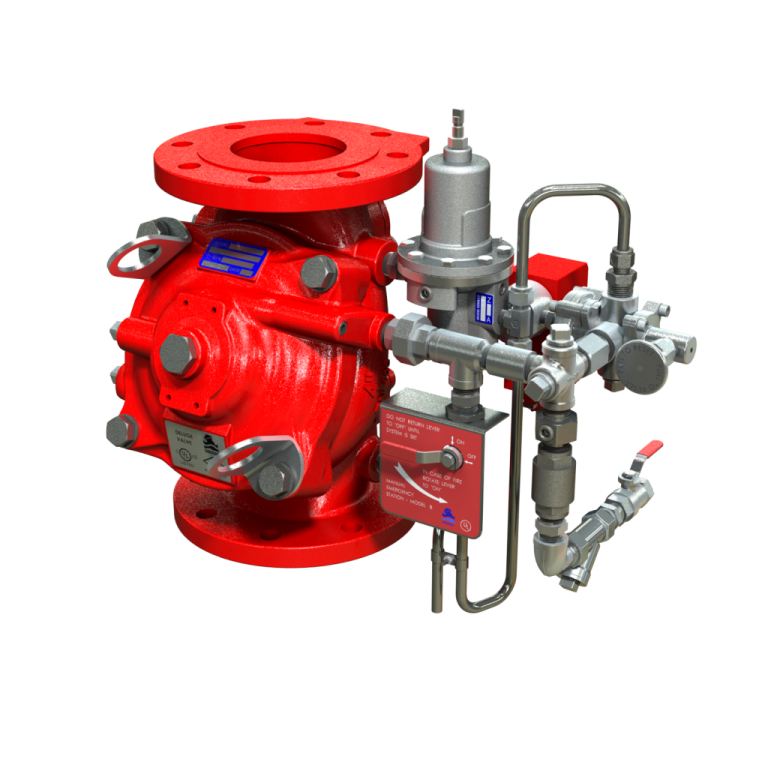

The BERMAD Model 400Y-6DC is an elastomeric, hydraulic line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y 6DC is activated by a fall in pneumatic pressure of the pilot line or by an electric signal to a 3 way solenoid valve. The 400Y 6DC can also be activated remotely either pneumatically or electrically. When open an integrated pressure reducing pilot valve regulates the main valve to maintain a precise, stable, pre-set downstream pressure. Opening or closing of the valve can be performed remotely. The 400Y-6DC is ideal for open-nozzle systems with a high pressure water supply. It is available with electrical components to suit any hazardous location.

Features and Benefits:
  • Safety and reliability
    • Time proven, Simple, fail-safe actuation
    • Single piece, rugged elastomeric diaphragm seal – VRSD technology
    • Obstacle-free, uninterrupted flow path
    • No mechanical moving parts
    • Shuts off on remote command
    • Ensures precise, stable downstream water pressure
    • Valve position limit switches
  • High performance
    • Very high flow efficiency
    • Straight through flow Y- type body
    • Approved for PN25 / 365 psi
  • Specifically designed for fire protection
    • Face-to-face length standardized to ISO 5752 / EN 558-1
    • Meets the requirements of the industry standards
  • Quick and easy maintenance
    • In-line serviceable
    • Quick cover removal without detaching control trim*
    • Swivel mounted drain valves*

* not including 1½” & 2” valves
