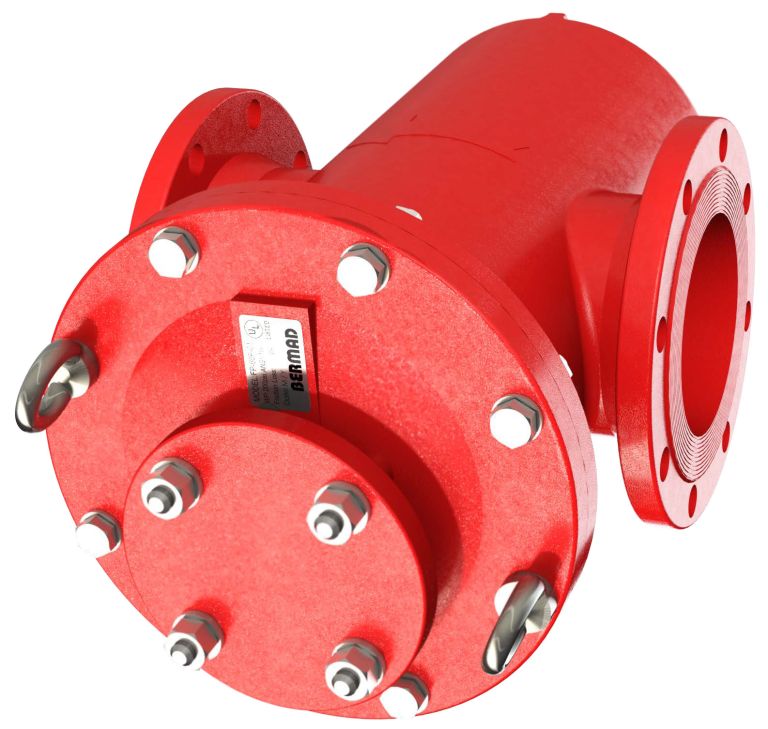

Model 60F-250 – Fire Line Basket Strainer

The BERMAD FP-60F-250 Basket Strainers are intended to be installed in fire protection pipelines primarily to prevent the clogging of fire sprinkler nozzles and other debris sensitive components in water or foam fire systems. The BERMAD FP-60F-250 is designed for in-line maintenance available with a large diameter flushing outlet for easy screen cleaning and simple screen basket extraction, requiring only cover removal. The ratio of the FP-60F-250 strainer’s basket screen area to the inlet pipe area is more than 10:1, ensuring continued system performance, a low pressure drop and longer intervals between cleaning. NFPA 11, 13, 15 and 16 standards state that listed strainers shall be provided in the main pipeline of all systems using nozzles where the water is likely to contain obstructive material.

Product Features & Benefits

UL-Listed and ULC size for Fire systems
Low pressure drop – Safety and reliability, ensures firewater availability
Easy in-line maintenance – Large diameter flushing port for fast and easy interim cleaning
Suitable to prevent clogging – Designed to trap particles larger than 3.2 mm / 1/8″ in diameter.
Large screen basket – Large basket area, Increasing system reliability and safety
Compatible for use with corrosive fluids and harsh environments – High Build Epoxy coated body/cover and stainless steel 316 screen
Suitable for Foam Systems – For use with foam proportioners or foam generators in compliance with NFPA 11 requirements
Suitable for potable or municipal potable-water – For use with firewater supply combination

Typical Product Applications
