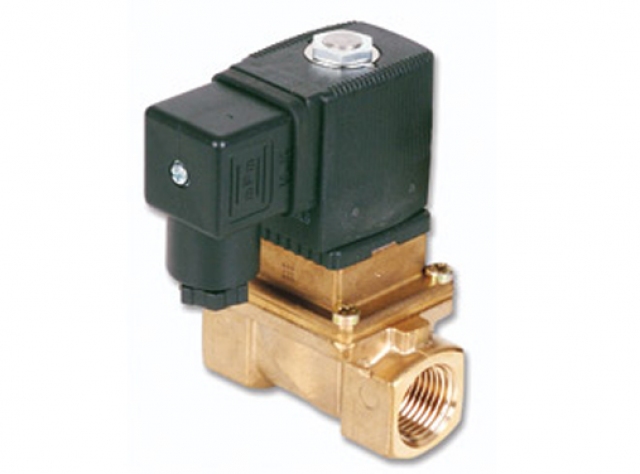

2-Way Solenoid Valve

This solenoid valve is a 2-way pilot operated diaphragm plunger type, requiring a minimum differential pressure to operate properly. It has an internal pilot and a bleed orifice, which enables it to use line pressure for operation. The solenoid valve’s design allows for a small overall dimension and a high flow-capacity, which provides a long-life in normal non-corrosive conditions. The solenoids coil is continuous duty design, with an Epoxy molded construction. This 2-way solenoid valve is suitable for activating BERMAD Deluge valves, Preaction Valves and other Hydraulic Control Valves

Product Features & Benefits

Features

  • High flow capacity, 12 mm orifice min.
  • Internal pilot operated
  • One-piece molded epoxy enclosure

Power

  • 8 Watts, 24V DC or 120, 220 VAC/50-60 Hz
  • Tolerance: ±10%

Materials

  • Body: Brass
  • Internals: Stainless steel
  • Diaphragm: NBR
  • Enclosure: Molded Epoxy
  • Optional: Stainless Steel 316 body
