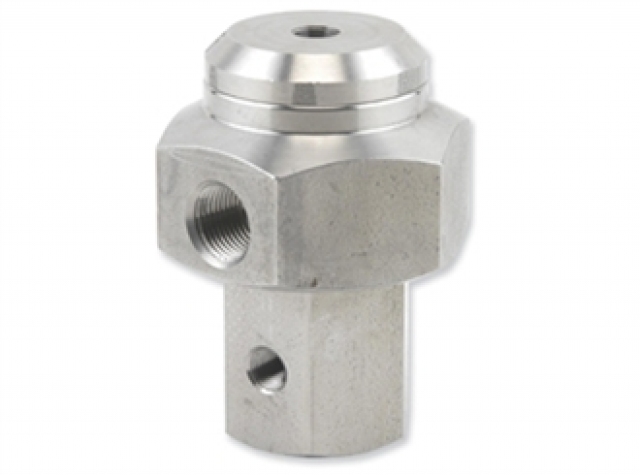

3-Way Accelerator (HRV-3)
The HRV-3 is used to relay and accelerate hydraulic signals, making the opening and closing of large size valves significantly quicker. In response to pressure status in its control chamber, the HRV-3 directs flow and pressure between its ports in the following manner: In response to pressure applied to its control chamber, the HRV-3 connects port “0” to port “2”. In response to pressure released from its control chamber, the HRV-3 connects port “2” to port “1”. Line pressure is applied to the HRV-3 control chamber through a solenoid or other device.
Product Features & Benefits
Materials
Body & cover
- Nickel plated Brass
- Stainless Steel 316
Elastomers
- NBR
Wetted Parts
- Brass and Stainless Steel
- Stainless Steel 316
Orifice
- 3/8″ (9 mm)
Pressure rating
- 21 bar (300 psi)
Flow factor
Closing: Ports 0 to 2 & 1 to 2: Kv 1.2 (Cv 1.4)
Opening: Ports 2 to 1 & 2 to 0: Kv 1.0 (Cv 1.2)
End Connections
- 3/8″ NPT
