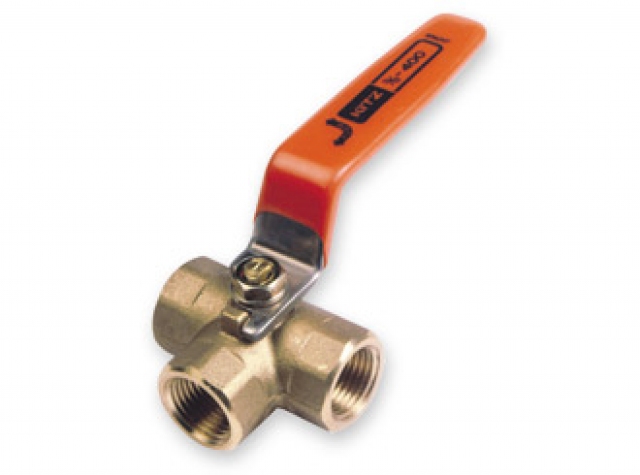

3-Way Ball Valve
This 3-way valve is used as a local or remote pilot valve, providing quick and easy 2-position on/off manual control.
Product Features & Benefits
Materials
Body
- Brass
- Stainless Steel 316
Ball
- Nickel plated Brass
- Stainless Steel 316(1)
Seats
- PTFE
Stem Seal
- FPM O-ring
Handle
- Stainless Steel
Note 1: Available on Stainless Steel valve only
Note 2: In accordance with UL subject 258
(Trim and Drain Valves), for Brass construction only
3-Way Ball Valve
Pressure Rating
Water: 400 psi (27.5 bar)
End Connections
1/4, 3/8, 1/2, 3/4, 11/2, 2” NPT
Approvals
UL listed(2)
Pressure Rating
- Water: 400 psi (27.5 bar)
End Connections
- 1/4, 3/8 or 1/2” NPT
