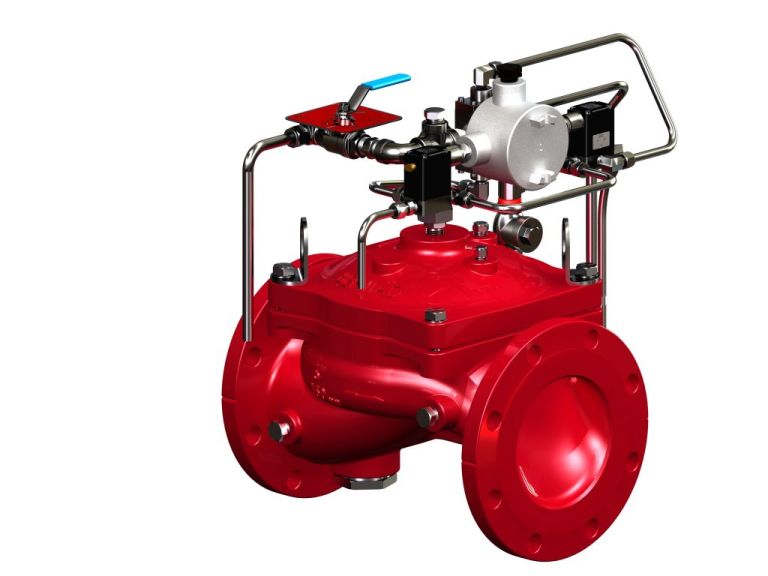

FP 400E-3D-RL
The BERMAD FP 400E-3D-RL Deluge Valve is suitable for use with remote controlled or/and automatic water spray or foam deluge systems that include electric detection and piping systems with open nozzles.
This BERMAD Deluge Valve is equipped with two solenoid valves and Double-Acting Relay Valve (DRV) which trips
the deluge valve into an open position during the Opening solenoid activation. The valve will then latch in its last position. The 400E-3D-RL will reset remotely via short pulse to activate the Closing solenoid coil.
Product Features & Benefits
- Low Power DC Current – Suitable as battery backup
- Electric Remote Reset Latch (RL) – Safety feature
- Latched at Last Position – Safer and energy-saving
- One-piece molded elastomeric moving part – No maintenance required
- Obstacle-Free Full Bore – Uncompromising reliability
- Factory Pre-Assembled Trim – Out-of-box quality
- In-Line Serviceable – Minimal downtime
Typical Product Applications
Typical Applications
- Water/foam fire systems
- Deluge & spray systems
- Petrochemical facilities
- Flammable materials storage
- Marine enviroments
- Gas storage tanks

Optional
- Solenoids for hazardous locations
- Limit Switch for hazardous locations
- Alarm Pressure Switch for hazardous locations
- Foam Concentrate Configuration (FC prefix)
- Valve Position Single/Double Limit Switches
