FP 400E-5D

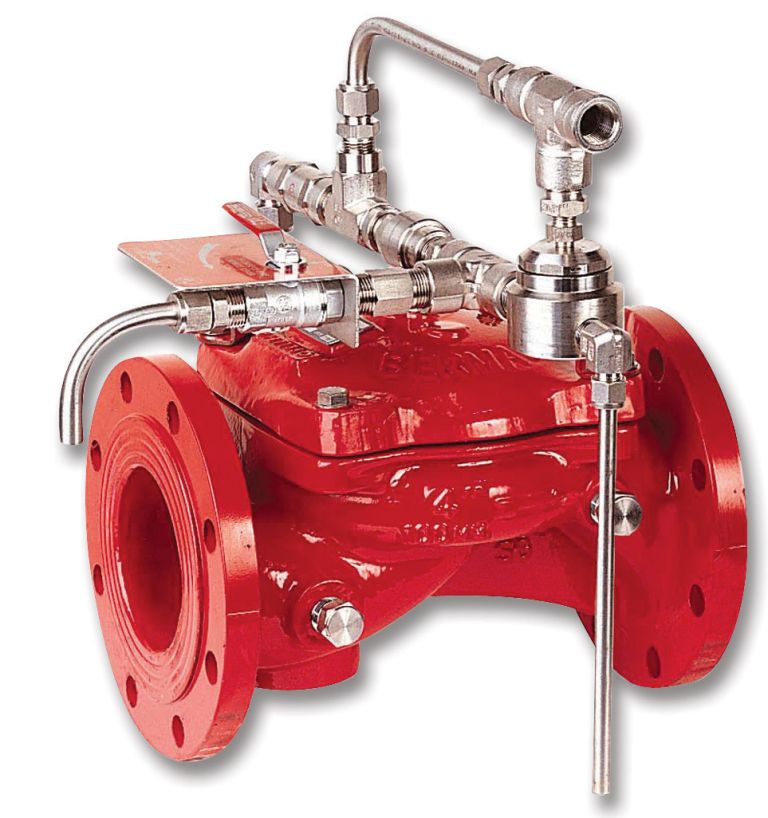

The BERMAD FP400E-5D Hydraulically Controlled Deluge valve with 5D trim is actuated by an HRV – Hydraulic Relay Valve, which permits local release of top chamber pressure (instead of the usual remote top chamber release by the hydraulic release system), in order to ensure quick opening even when the release device is distant. The Deluge Valve requires a wet pilot line system including hydraulic releases.


Features and Benefits:
  • Local release HRV – Quick opening for long hydraulic remote control piping lines
  • Remote reset – Shut-off on remote command
  • One-piece molded diaphragm-Only moving part, No maintenance required
  • Simple design – Cost effective
  • Obstacle-free full bore – Uncompromising reliability
  • Factory pre-assembled trim – Out-of-box quality
  • In-line serviceable – Minimal down time
Downloads

FP 400E Engineering

FP 400E 5D Product Page English

FP 400E 5D IOM English
