FP 400Y – 2DC

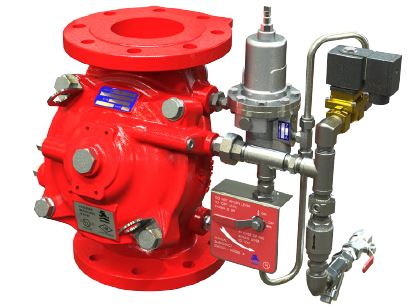

The BERMAD model 400Y-2DC is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y-2DC is activated by a 2-way solenoid valve by which opening and closing of the deluge valve may be controlled remotely. An integrated pressure reducing pilot ensures a precise and stable pre-set downstream water pressure. The 400Y-2DC is ideal for open-nozzle systems with a high pressure water supply and is available with electric components to suit any hazardous location. The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.
Product Features & Benefits
  • Safety and reliability

-Time-proven, simple, fail-safe actuation
-Single-piece, rugged, elastomeric diaphragm seal –  VRSD technology
-Obstacle-free, uninterrupted flow path
-No mechanical moving parts
-Shuts off on remote command
-Ensures precise, stable downstream water pressure
-Valve position limit switches (optional)



  • Designed for fire protection

-Face-to-face length standardized to ISO 5752, EN 558-1
-Meets the requirements of the industry standards



  • Quick and easy maintenance

-In-line serviceable
-Fast and easy cover removal
-Swivel mounted drain valves*

* not including 1½” & 2” valves

Typical Product Applications

Typical Applications

  • Remote control water spray systems
  • Foam applications
  • Corrosive water supplies
  • High pressure water supply



System Installation
A typical installation of the BERMAD model 400Y-2DC features actuation via a hydraulic relay valve and 2-way solenoid valve, triggered by a signal from a fire & gas control system or an on-site emergency pushbutton.

When open, and fitted with a limit switch the valve can send a feedback signal to a remote valve position monitoring system.
A pressure reducing pilot valve integrated in the control trim ensures a precise and stable pre-set downstream water pressure.2DC Page 3-rev5
