FP 400Y-3U-H2

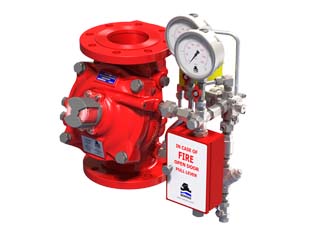

The BERMAD model 400Y-3U-H2 is an elastomeric, hydraulically self-actuated deluge valve specifically designed for advanced fire protection systems and the latest industry standards The 400Y-3U-H2 is activated by a 3-way solenoid valve, which latches open and therefore remains open in the event of an electricity failure. Opening and closing of the deluge valve can be controlled remotely. The 400Y-3U-H2 is suitable for systems with open nozzles for water or foam discharge. The valve’s proprietary position monitoring device features a visual position indicator and can interface with any fire & gas control system.

Features and Benefits:
  • Safety and reliability
    • Time proven, Simple, fail-safe actuation
    • Single piece, rugged elastomeric diaphragm seal – VRSD technology
    • Obstacle-free, uninterrupted flow path
    • No mechanical moving parts
    • Latches open: remains open until reset locally
    • Valve position limit switches
    • Local valve position indicator beacon
  • High performance
    • Very high flow efficiency
    • Straight through flow Y- type body
    • Approved for PN25 / 365 psi
  • Specifically designed for fire protection
    • Face-to-face length standardized to ISO 5752 / EN 558-1
    • Latching solenoid
    • Meets the requirements of the industry standards
  • Quick and easy maintenance
    • In-line serviceable
    • Quick cover removal without detaching control trim*
    • Swivel mounted drain valves*

* not including 1½” & 2” valves
