FP 400Y-5D

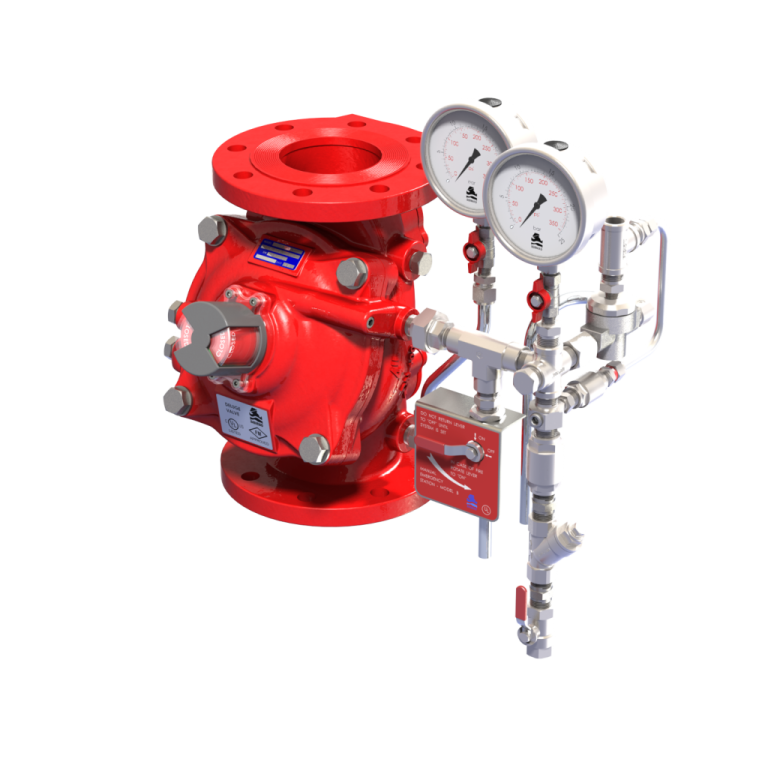

The BERMAD Model 400Y-5D is an elastomeric, hydraulic line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y-5D is activated by a hydraulic relay valve, by which opening and closing of the valve can be controlled remotely. The 400Y-5D is suited to systems with remote or elevated wet pilot lines. The valve’s position monitoring device features a visual position indicator and can interface with any fire & gas control system.


Features and Benefits:
  • Safety and reliability
    • Time proven, Simple, fail-safe actuation
    • Single piece, rugged elastomeric diaphragm seal – VRSD technology
    • Obstacle-free, uninterrupted flow path
    • No mechanical moving parts
    • Shutts off on remote command
    • Valve position limit switches
    • Local valve position indicator beacon
  • High performance
    • Very high flow efficiency
    • Straight through flow Y- type body
    • Approved for PN25 / 365 psi
  • Specifically designed for fire protection
    • Face-to-face length standardized to ISO 5752 / EN 558-1
    • Meets the requirements of the industry standards
    • Suitable for corrosive fluids and freezing temperatures: pneumatic relay valve
  • Quick and easy maintenance
    • In-line serviceable
    • Quick cover removal without detaching control trim*
    • Swivel mounted drain valves*

* not including 1½” & 2” valves
