FP 400Y-5UH

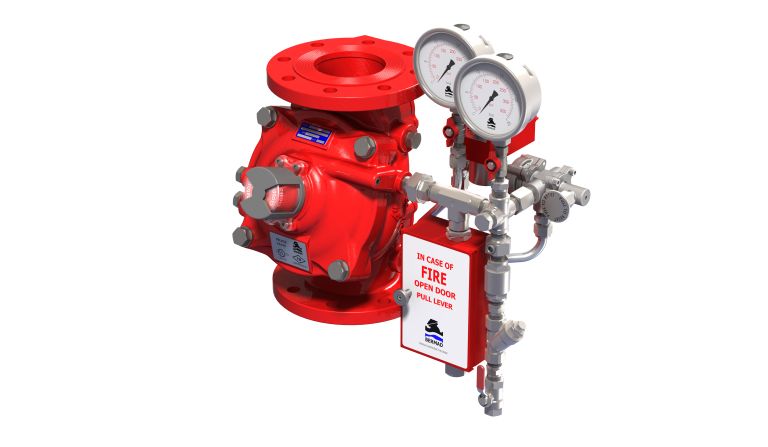

The BERMAD model 400Y-5U-H is an elastomeric, hydraulically self-actuated deluge valve. It is specifically designed for advanced fire protection systems and the latest industry standards The 400Y-5U-H is activated by a pressure operated relay valve, which latches the main valve open until manually reset. The 400Y-5U-H is suitable for systems with open nozzles for water or foam discharge. The valve’s position monitoring device features a visual position indicator that can interface with any fire & gas control system.


Features and Benefits:
  • Safety and reliability
    • Time proven, Simple, fail-safe actuation
    • Single piece, rugged elastomeric diaphragm seal – VRSD technology
    • Obstacle-free, uninterrupted flow path
    • No mechanical moving parts
    • Latches open: remains open until reset locally
    • Valve position limit switches
    • Local valve position indicator beacon
  • High performance
    • Very high flow efficiency
    • Straight through flow Y- type body
    • Approved for PN25 / 365 psi
  • Specifically designed for fire protection
    • Face-to-face length standardized to ISO 5752 / EN 558-1
    • Meets the requirements of the industry standards
  • Quick and easy maintenance
    • In-line serviceable
    • Quick cover removal without detaching control trim*
    • Swivel mounted drain valves*

* not including 1½” & 2” valves

Downloads

FP400Y Torrent Flyer

FP 400Y TORRENT DELUGE VALVES

FP 400Y Torrent Engineering
