FP 400Y-6-DC-H

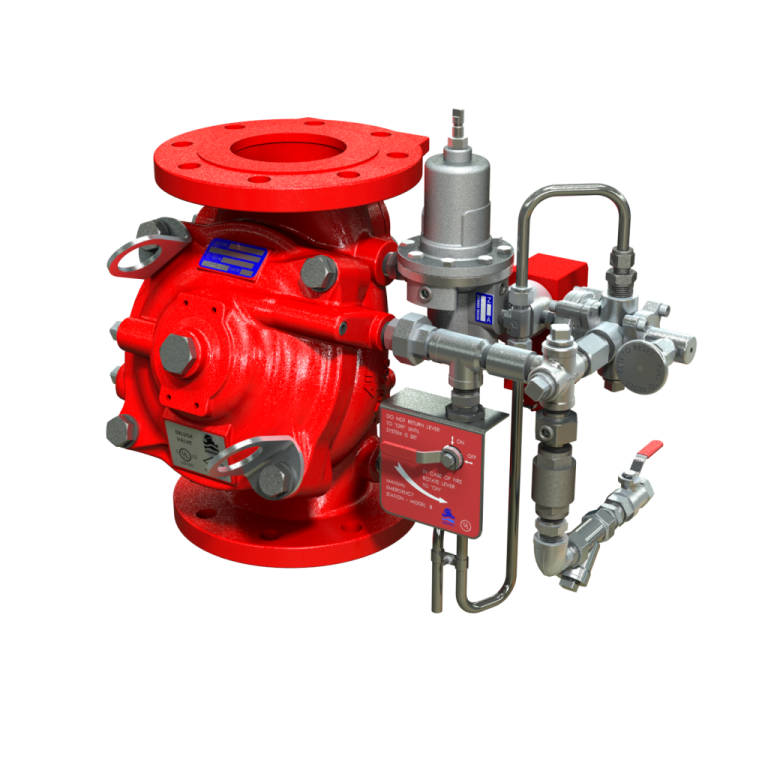

The BERMAD Model 400Y-6DC-H is an elastomeric, hydraulic line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards.
The 400Y 6DC-H is activated by a fall in pneumatic pressure caused either by the activation of a sprinkler in the dry pilot line or by an electric signal to the 3 way solenoid valve. The 6DC-H can also be activated remotely either pneumatically or electrically. Once open the 6DC-H latches in the open position, until locally reset.
When open an integrated pressure reducing pilot valve regulates the main valve to maintain a precise, stable, pre-set downstream pressure.
The 400Y-6DC-H is ideal for open-nozzle systems with a high pressure water supply. It is available with electrical components to suit any hazardous location.
Features and Benefits:
- Safety and reliability
- Time proven, Simple, fail-safe actuation
- Single piece, rugged elastomeric diaphragm seal – VRSD technology
- Obstacle-free, uninterrupted flow path
- No mechanical moving parts
- Shuts off on remote command
- Ensures precise, stable downstream water pressure
- Valve position limit switches
- High performance
- Very high flow efficiency
- Straight through flow Y- type body
- Approved for PN20 / 300 psi
- Quick and easy maintenance
- In-line serviceable
- Quick cover removal without detaching control trim*
- Swivel mounted drain valves*
* not including 1½” & 2” valves
