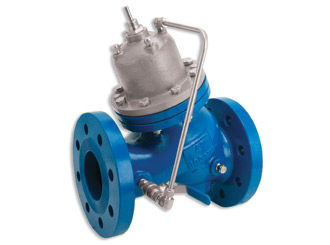

Model 820-PP

The Model 820-PP High Pressure, Proportional Pressure Reducing Valve is a hydraulically operated, piston actuated control valve that reduces higher upstream pressure to lower downstream pressure at a fixed ratio.
Product Features & Benefits
  • Robust structure, piston actuated – High pressure service
  • Line pressure driven – Independent operation
  • Elegant simplicity
    • Most cost effective
    • Simple to maintain
    • Minimal external accessories
  • Built-in check feature – Replacing line sized check valve
  • In-line serviceable – Easy maintenance
  • Double chamber – Moderated valve reaction
  • Flexible design – Easy addition of features
  • Semi-straight flow – Non-turbulent flow
  • Stainless Steel raised seat – Cavitation damage resistant
  • Obstacle free, full bore – Uncompromising reliability
  • V-Port Throttling Plug – Low flow stability
Typical Product Applications

There are two major applications for the Model 820-PP High Pressure, Proportional Pressure Reducing Valve:

  • Long downhill lines.
  • Systems A1 and A2 prevent the downhill line from exceeding its pressure rating.
  • High differential pressure systems.
  • System B reduces cavitation damage and noise level by distributing the load of the high differential pressure.
  • System C illustrates protection of a circulation valve from high differential pressure and resultant severe cavitation.
  • System D shows protection of a level control valve from high differential pressure.

WW_APP_820-PP

There are two major applications for the Model 820-PP High Pressure, Proportional Pressure Reducing Valve:

  • Long downhill lines.
  • Systems A1 and A2 prevent the downhill line from exceeding its pressure rating.
  • High differential pressure systems.
  • System B reduces cavitation damage and noise level by distributing the load of the high differential pressure.
  • System C illustrates protection of a circulation valve from high differential pressure and resultant severe cavitation.
  • System D shows protection of a level control valve from high differential pressure.

WW_APP_820-PP
