Model 9PM-MV

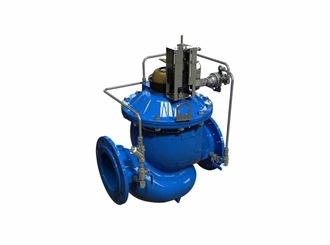

The BERMAD Model 9PM integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. The 9PM is a Flow Compensated Pressure Reducing hydrometer that automatically and continuously optimizes downstream pressure, correlating valve setting with demand.
Product Features & Benefits
  • Self contained hydro-mechanical
    • Does not rely on electrical power supply
    • Does not require additional pipeline accessories
  • Integrated “All-in-One” Control Valve
    • Saves space, cost and maintenance
  • Internal Inlet & Outlet Flow Straighteners
    • No need for flow straightening distances
    • Maintains accuracy
  • Simple design
    • Does not require specialist commissioning
    • Fits all “sites”
  • V-Port throttling plug
    • Very stable at low flow
    • Increased valve travel
  • Magnetic Drive with Sealed Register
    • Water-free gear train mechanism
    • Reed-switch and Opto pulse-generating modes
    • Various pulse combinations
  • In-line serviceable – Easy maintenance
