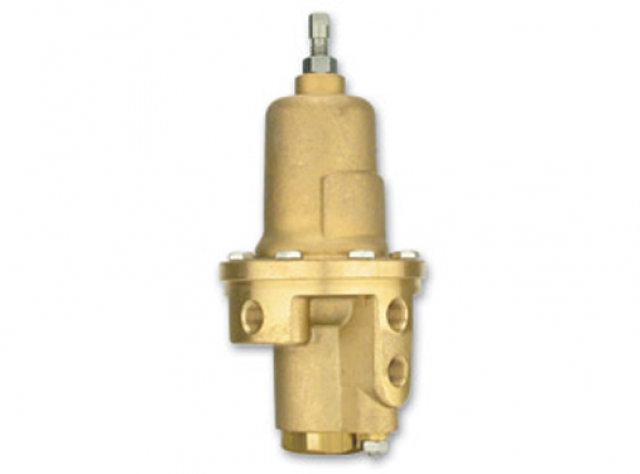

Pressure Reducing Pilot Valve Model #2UL

This pilot valve integrates all the principal functions of a two-way control circuit into a single assembly. It is a direct acting valve, actuated by a pressure responsive diaphragm, which tends to reach equilibrium with the set spring force. When used in a pressure reducing circuit, the pilot modulates closed as downstream pressure rises above set point. An integral needle valve acts as an upstream flow restrictor as well as a closing speed control.
Product Features & Benefits

Features

  • Integral needle valve
  • Internal pressure sensing

Typical Applications

  • Pressure reducing valves

Approvals

  • UL Listed when installed on Bermad
  • UL-Listed valve configurations

Technical Data

  • Pressure Rating: 40 bar (600 psi)
  • Working Temperature: Water up to 80°C (180°F)
  • Flow Factor: Kv 1.0 (Cv 1.2)

Standard Materials:

  • Body & cover: Stainless Steel 316, CF8M
  • Elastomers: NBR (Buna N)
  • Internals: Stainless Steel & Brass
  • Spring: Galvanized Steel

Optional Materials:

  • All Stainless Steel 316
  • Nickel Aluminum Bronze ASTM B148
  • Hastalloy C-276
Downloads

Pilot 2UL Product Page English
