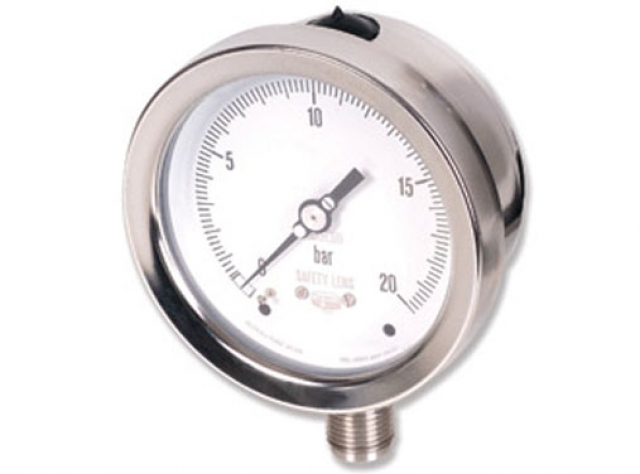

Stainless Steel Pressure Gauge

This Pressure Gauge provides visual indication of water and air pressure in Bermad’s water control vales, such as Deluge, Preaction, Pressure Control and Remote Control Valves. The core of the Pressure Gauge is a spring suspended movement, which is resistant to a reasonable levels of shock, vibration and pulsation – thus assuring accurate and long lasting performance. The case is Glycerin filled, impact-resistant, tough, rigid, and provides excellent corrosion resistance and is rated for IP 65 ingress protection. Utilizing an impact/heat resistant window.


Features and Benefits:

Materials

  • Socket: Stainless Steel 316

Option: Monel 400

  • Bourdon Tube: Stainless Steel 316

Option: Monel 400

  • Case: Stainless Steel 304, Glycerin filled

Option: Stainless Steel 316, Glycerin filled

  • Window: Laminated safety glass
  • Dial: Aluminum
  • Pointer: Aluminum

End Connections

  • 1/4” NPT

Dual Scale

  • 0-25 bar/0-350 psi

Dial Size

  • 100 mm (4”)

Accuracy

  • 1% of full scale

Temperature Range

  • Ambient: -40°C to +65°C (-40°F to +150°F)
  • Max. Fluid: 100°C (212°F)
